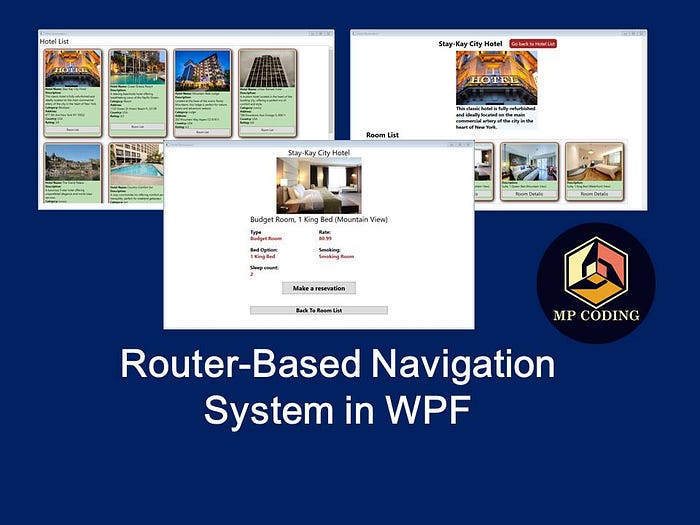

Building a Router-Based Navigation System in WPF Using ViewModel Routing

WPF Router Navigation

intro

Introduction

In this post, we’ll walk through building a router-based navigation system in WPF using ViewModel routing. This method will help you manage navigation between views using ViewModels and also allow for asynchronous navigation and parameter passing between ViewModels.

video tutorials

1. Overview of the Navigation System

We will create a router-based navigation system that will:

• Route between multiple views using ViewModels.
• Pass parameters to ViewModels during navigation.
• Support asynchronous initialization of ViewModels.

The system includes:

• A ViewModelRouter class to handle navigation.
• INavigationService and supporting interfaces for synchronous and asynchronous navigation.
• A NavigationService<TViewModel> to register ViewModels and manage the routing process.
• A NavigationStore to hold the current ViewModel for display in the view.

2. Creating the Core Interfaces

We start by defining two core interfaces that will manage parameter passing and asynchronous initialization in our ViewModels.

• IParameterNavigationService
  This interface allows a ViewModel to accept parameters when it is being navigated to.

public interface IParameterNavigationService
{
    void ParameterInitialize(params object[] parameters);
}

• IAsyncNavigationService
  This interface supports asynchronous initialization for any ViewModel that requires time-consuming setup, such as fetching data from a server.

public interface IAsyncNavigationService
{
    Task InitialzeAsync();
}

• INavigationService
  The navigation system is driven by this interface, which defines the methods for synchronous and asynchronous navigation.

public interface INavigationService
{
    void Navigate(params object[] parameters);
    Task AsyncNavigation(params object[] parameters);
}

3. Building the NavigationService<TViewModel>

Next, we define the NavigationService<TViewModel>, which will handle the creation of a new ViewModel and manage the initialization of parameters or asynchronous tasks when navigating.

public class NavigationService<TViewModel> : INavigationService where TViewModel : BaseViewModel
{
    private readonly NavigationStore _navigationStore;
    private readonly Func<TViewModel> _createViewModel;

    public NavigationService(NavigationStore navigationStore, Func<TViewModel> createViewModel)
    {
        _navigationStore = navigationStore;
        _createViewModel = createViewModel;
    }

    public void Navigate(params object[] parameters)
    {
        var viewModel = _createViewModel();

        if (parameters.Length > 0 && viewModel is IParameterNavigationService paramViewModel)
        {
            paramViewModel.ParameterInitialize(parameters);
        }

        _navigationStore.CurrentViewModel = viewModel;
    }

    public async Task AsyncNavigation(params object[] parameters)
    {
        var viewModel = _createViewModel();

        if (parameters.Length > 0 && viewModel is IParameterNavigationService paramViewModel)
        {
            paramViewModel.ParameterInitialize(parameters);
        }

        if (viewModel is IAsyncNavigationService asyncViewModel)
        {
            await asyncViewModel.InitialzeAsync();
        }

        _navigationStore.CurrentViewModel = viewModel;
    }
}

4. Setting Up the ViewModelRouter

The ViewModelRouter acts as the central piece, routing to the correct ViewModel based on a provided URL and handling both synchronous and asynchronous navigation.

public class ViewModelRouter
{
    private readonly IDictionary<string, INavigationService> _routes;

    public ViewModelRouter(IDictionary<string, INavigationService> routes)
    {
        _routes = routes;
    }

    public void NavigateTo(string url, params object[] parameters)
    {
        if (_routes.ContainsKey(url))
        {
            _routes[url].Navigate(parameters);
        }
    }

    public async Task AsyncNavigation(string url, params object[] parameters)
    {
        if (_routes.ContainsKey(url))
        {
            await _routes[url].AsyncNavigation(parameters);
        }
    }
}

5. The Navigation Store

To manage which ViewModel is currently active, we use a NavigationStore class that holds the current ViewModel and triggers a view update when changed.

public class NavigationStore
{
    private BaseViewModel _currentViewModel;

    public BaseViewModel CurrentViewModel
    {
        get { return _currentViewModel; }
        set
        {
            _currentViewModel = value;
            OnCurrentViewModelChanged();
        }
    }

    public event Action CurrentViewModelChanged;

    private void OnCurrentViewModelChanged()
    {
        CurrentViewModelChanged?.Invoke();
    }
}

6. Creating the ViewModels

Each ViewModel that participates in navigation should implement the appropriate interfaces as needed. For example, the SomeViewModel implements both IParameterNavigationService and IAsyncNavigationService to handle parameters and asynchronous initialization.

public partial class SomeViewModel : BaseViewModel, IParameterNavigationService, IAsyncNavigationService
{
    public async Task InitialzeAsync()
    {
        await Task.Delay(1000);  // Simulate async work.
    }

    public void ParameterInitialize(params object[] parameters)
    {
        // Use parameters as needed.
    }
}

7. Dependency Injection Setup

Next, we configure Dependency Injection using a HostBuilder. This registers the ViewModels and the router in the service collection.

services.AddSingleton<NavigationStore>();

services.AddTransient<SomeViewModel1>();
services.AddTransient<SomeViewModel2>();
services.AddTransient<SomeViewModel3>();

services.AddSingleton<ViewModelRouter>((s) =>
    new ViewModelRouter(new Dictionary<string, INavigationService>
    {
        {
           "SomeView1",
           new NavigationService<SomeViewModel1>(
                    s.GetRequiredService<NavigationStore>(),
                    () => s.GetRequiredService<SomeViewModel1>())
        },
        { "SomeView2", new NavigationService<SomeViewModel2>(s.GetRequiredService<NavigationStore>(), () => s.GetRequiredService<SomeViewModel2>()) },
        { "SomeView3", new NavigationService<SomeViewModel3>(s.GetRequiredService<NavigationStore>(), () => s.GetRequiredService<SomeViewModel3>()) }
    }));

8. Binding the ViewModels to the Views

We bind the current ViewModel from the NavigationStore to the view in the XAML using ContentControl and DataTemplates for each ViewModel.

<Grid>
    <Grid.Resources>
        <DataTemplate DataType="{x:Type vm:SomeViewModel1}">
            <view:SomeView1/>
        </DataTemplate>
        <DataTemplate DataType="{x:Type vm:SomeViewModel2}">
            <view:SomeView2/>
        </DataTemplate>
        <DataTemplate DataType="{x:Type vm:SomeViewModel3}">
            <view:SomeView3/>
        </DataTemplate>
    </Grid.Resources>

    <ContentControl Content="{Binding CurrentViewModel}" />
</Grid>

Main View Model

public partial class MainViewModel : BaseViewModel
{
    private readonly NavigationStore _navigationStore;

    [ObservableProperty] // using CommunityToolkit MvvmComponentModel
    private BaseViewModel _currentViewModel;

    public MainViewModel(NavigationStore navigationStore)
    {
        _navigationStore = navigationStore;
        CurrentViewModel = _navigationStore.CurrentViewModel;
        _navigationStore.CurrentViewModelChanged += OnCurrentViewModelChanged;
    }

    private void OnCurrentViewModelChanged()
    {
        CurrentViewModel = _navigationStore.CurrentViewModel;
    }
}

GitHub - madhawapolkotuwa/RouterNavigationWPF: Router Navigation Service for WPF Application…

Conclusion

By implementing a ViewModelRouter, INavigationService, and NavigationStore, you’ve created a powerful, flexible, and asynchronous navigation system for WPF applications. This system allows for easy parameter passing and async initialization, making it ideal for modern applications that require dynamic view management.

Now you can expand this system with new features and enhance your WPF apps with more modular and reusable components!
